Commutators
We are now offering head stages compatible with our commutators.
For more information, visit Triangle Biosystems and scroll down
the page for multiplexer and teathered models.

  • Our commutators have the lowest torque of any electrical swivel

  • Fluid options available

  • Up to 12 Channels (mercury)

  • Up to 120 Channels (slip-ring)

  • Torque-sensing motor drive option available, pictured at left. Click for larger view and description.


(Click for larger view)



Model SL-88 Miniature Slip-ring Commutator now available!

Brand new design, very low torque, low noise, high reliability...

Dragonfly commutators' consistant reliability and excellent noise and torque specifications have made them the top choice of universities, pharmaceutical companies and research professionals for years. A wide range of custom options is available including torque sensing motor assistance, built-in pre-amplifiers and choice of electrical connectors. Some units can be adapted to carry fluid using the fluid swivels from Instech Labs. Just contact us with your specifications for a quick price quote on options.



Model 50-6
Mercury Stimulating/Recording Commutator

(2 channel Fluid Option available)

MERCURY COMMUTATORS

The Mercury Commutator is a rotating multi-channel electrical connector designed specifically for low noise recording/stimulating small unrestrained laboratory animal models. All of our Mercury Recording/Stimulating Commutators are compatible with a 2 channel fluid option via Instech TM fluid swivels. They come in 6, 12 and 19 channel models. They are the lowest torque commutators commercially available, and can be supplied with up to 18 impedance matching preamplifier channels (Unity Gain FET ac or dc available) mounted at animal model head stage.

Mercury Commutator Pricing

No. of Channels

Catalog Number

Description

6

CM-50-6

Mercury pool commutator with fluid access for 30 gram Mice

12

SL-75-12

Mercury pool commutator with fluid access for 30 gram Mice



SLIP-RING COMMUTATORS

Our Instrumentation quality Slip-ring Commutators feature low torque, low noise rotating electrical connection. Note: Fluid swivel compatibility is not available on the 4 to 36 channel models. They come complete with our standard input and output cables, and are available in the following configurations: 4, 6, 10, 20, 36, 84, and 120 electrical channels.

Slip-ring commutators are available with up to 32 impedance matching preamplifier channels (optional Unity Gain FET ac or dc available) mounted at the head stage. 'Gain of 10' models are also available for each of our commutators.


(Click for larger view)

Model SL-88-10
Miniature Slip-Ring Commutator

This new, miniature10 channel commutator is designed for recording from mice, pre-natal rat pups, echolating bats, 15 gram song birds, etc.

Known as the Model # SL-88-10, this miniature commutator has the same noise specifications as our Model #SL-10, but is designed specifically for very small animal models by vastly reducing the size and mass of the rotating electrode shaft. The unit is fully shielded and grounded, and is made primarily of aluminum and stainless steel. The input connector is a DALE TM 11-pin female, and the output connector is a DB-15 female. The mating male connectors are supplied.

All of our commutators are "precision" instruments which can be rebuilt or repaired for a fraction of the original cost. We can also provide customized input/output cables (standard or pre-amplifier types), break out boxes, electrode selector interfaces, momentary stimulation switching units, etc..

We now offer precision slip ring commutator with a 2 channel rotating fluid cannula option (uses Instech Labs .375 series fluid swivel), in 6 to 12 channels, designed to facilitate simultaneous micro-dialysis/EEG in mice, and 18 to 24 channels for rats.

 #SL-88 Miniature Slip-Ring Commutator Pricing

No. of Channels

Catalog Number

Description



10



SL-88-10



Slip-Rings for recording from very small animal models including song birds, pre-natal rat pups, etc.

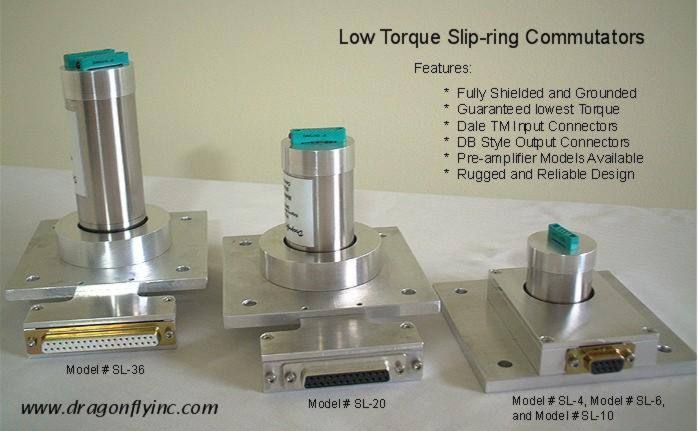

  Model SL-36
Slip-Ring Commutator
(Motor Drive Option available)

 Standard Slip-Ring Commutator Pricing

No. of Channels

Catalog Number

Description

4

SL-4

Slip Rings for 30 gram Mice

6

SL-6

Slip Rings for 30 gram Mice

10

Sl-10

Slip Rings for 30 gram Mice

20

SL-20

Slip Rings for 100 gram or greater animal model

36

SL-36

Slip Rings for 250 gram or greater animal model

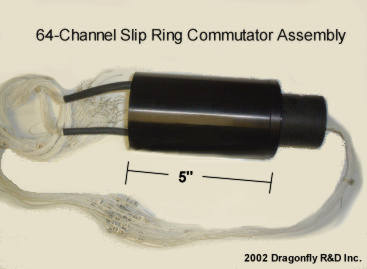

For larger models, up to 120 channels, contact us for quote (fluid option available).
